Highest accuracy due to state-of-the-art technology

OPC Optics is an independent manufacturer of prototypes and large series of aspherical and spherical lenses. OPC Optics relies on innovative production processes, state-of-the-art technology and optimal delivery performance.

Range of services

  • Spherical and aspherical lenses, double aspheres, achromatic lenses, assemblies, complete lenses
  • Diameter 5-100mm (outside possible on request)
  • Processing of all optical glasses, plastics as well as UV and IR crystals
  • From individual production to series production
  • Contract measurement of optical components, optical design and engineering
  • Technical support during development and project-related consulting

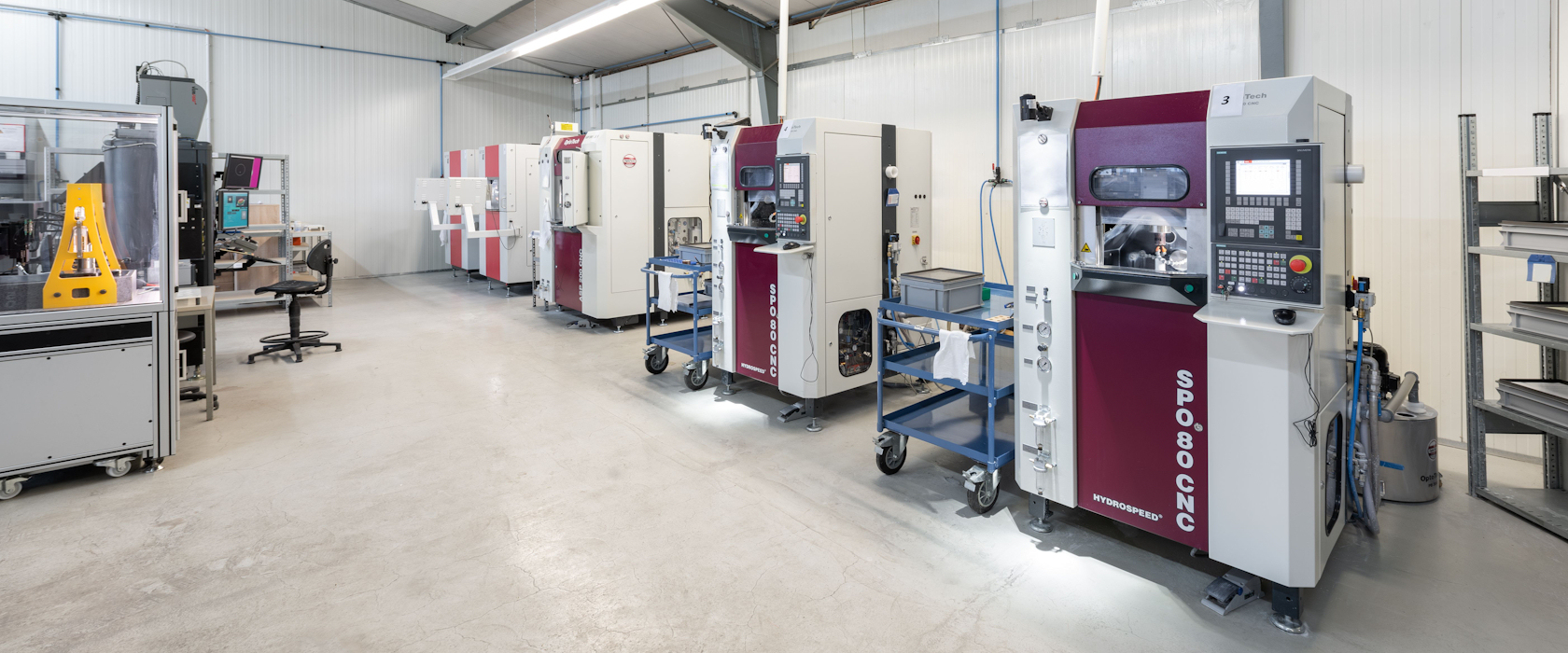

Production capabilities

Spheric Aspheric
(precision)
Aspheric
(precision+)
Double
aspheric
Center thicknesses +/- 0,01mm +/- 0,1mm +/- 0,05mm +/- 0,05mm
Diameter +/- 0,01mm +/- 0,05mm +/- 0,02mm +/- 0,02mm
Local radius
of curvature (cc)
/ 20mm 20mm 20mm
Tilt angle between
aspherical surface and
sphere
/ (4/) - 3‘ (4/) – 1,5‘ /
Surface-
imperfection
(5/) 2 x 0,01 (5/) 5 x 0,25 (5/) 2 x 0,01 (5/) 2 x 0,01
Centering accuracy (4/) 0,5‘ / / on request
Surface shape-
tolerance (3/A(B/C)
(3/) 1(0,1) A <= 2μm
B <= 2μm
C <= 0,5µm
RMS = 0,5µm
A <= 0,5μm
B <= 1μm
C <= 0,25µm
RMS = 0,25µm
A <= 0,5μm
B <= 1μm
C <= 0,25µm
RMS = 0,25µm
Customer-specific
solutions on request

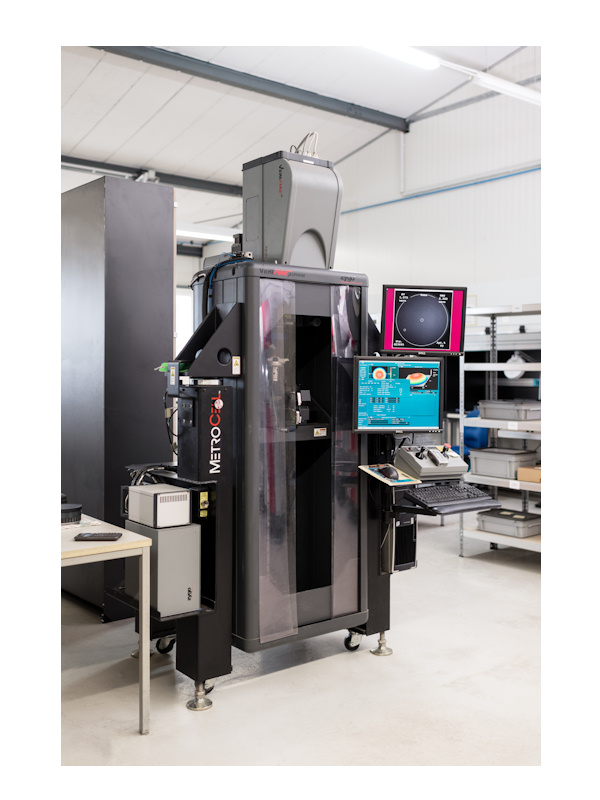

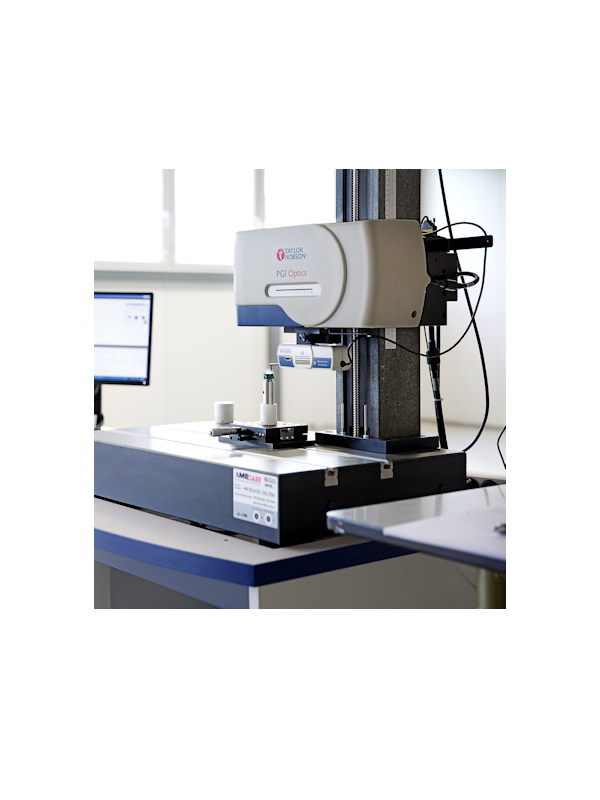

Measurement and testing

Our products undergo an extensive testing process. In order to achieve the best possible and highly accurate results, we rely on absolute high-end measurement technology. This allows us to manufacture with absolute precision and to maintain the lowest possible tolerances. You can find an overview of the technology used at Machinery and technology.

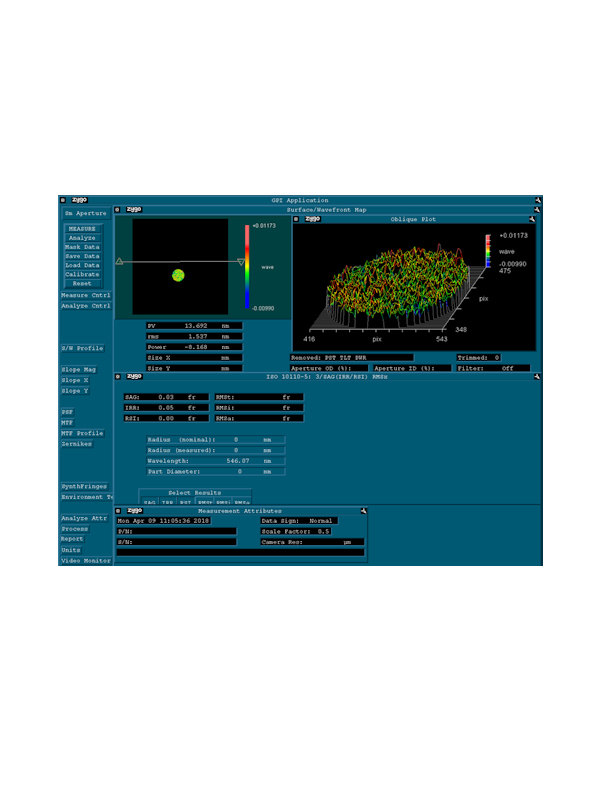

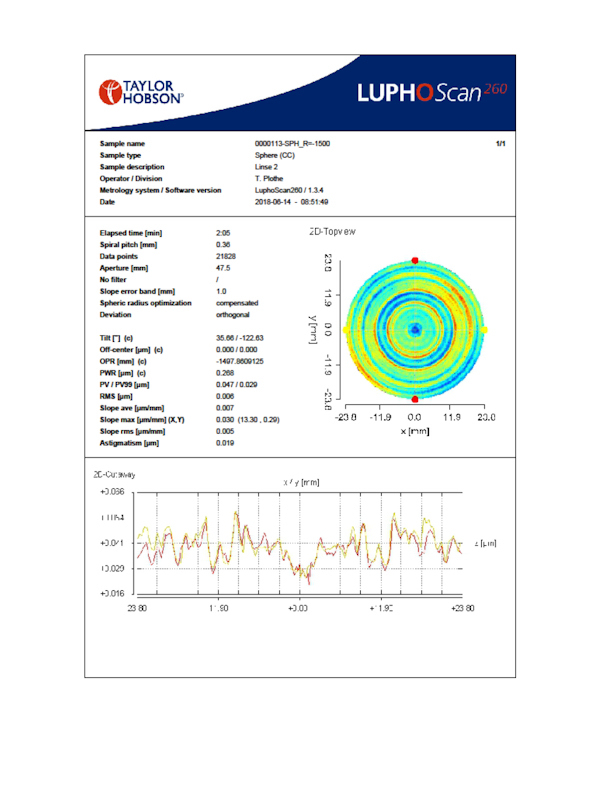

Documentation

Customers from all over the world rely on OPC Optics thanks to complete documentation from the glass melt to the processing of the raw glass to the finished lens. These have been integrated into our manufacturing process as standard (incl. individual traceability). Customers receive the production history without surcharge.



Benefit from our strengths

  • We offer delivery times starting from 2 weeks
  • No separate tool costs for all own processes
  • Highest accuracy due to state-of-the-art measurement technology
  • Reliability due to automated test protocols
  • Provision of the order and production history including individual traceability

Location Germany

  • Spherical and aspherical lenses, double aspheres, achromatic lenses, assemblies
  • diameter 5-100mm (outside possible on request)
  • Processing of all optical glasses, plastics as well as UV and IR crystals
  • Illuminated production to series production
  • Lens manufacturing (Meyer Optik Görlitz lenses)
  • Transfer measurement of optical components, optical design and engineering
  • Technical support for developments and project-related consulting

Standort China

  • Own production line for price-sensitive components and optics
  • Spherical lenses large series (automated CNC production)
  • lens production large series (industrial lenses and infrared lenses)
  • Infrared lenses (silicon, germanium, etc.) Single diamond processing (Precitec and Innolite machines)
  • Plastic lenses
